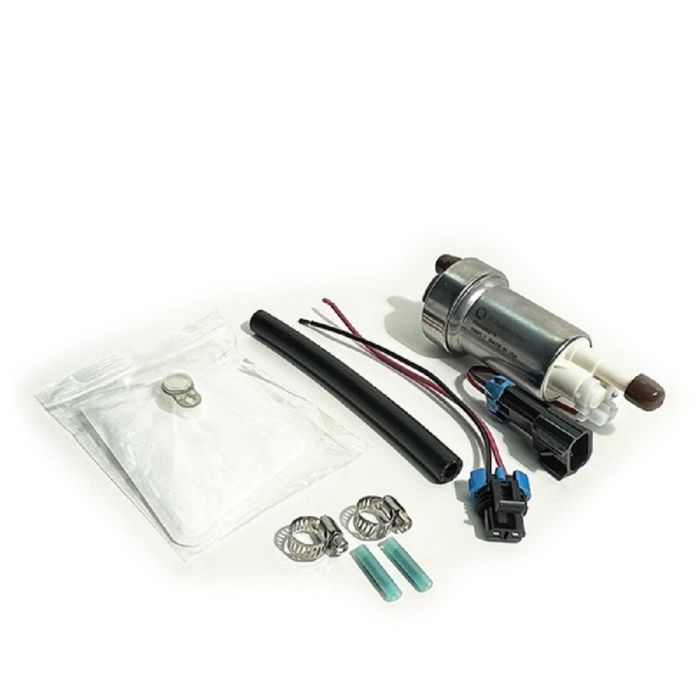

Walbro 525Lph Hellcat Pump E85 F90000285 with Install Kit

WALBRO HELLCAT 525LPH FUEL PUMP E85 F90000285

Fuel pump install kit for 525 Hellcat 124 gph/470 lph 900+ at 60PSI, naturally aspirated Designed for high performance engines exceeding 500hp.

E85 compatible
Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
High pressure relief setting — support supercharger and turbo application
Capable of supporting 900+HP at 60PSI naturally aspirated applications
Fuel: GAS & E85 Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm Main Housing Diameter: 39mm Lower Housing Diameter: 50mm Fuel Inlet Diameter: 11mm OD Fuel Outlet Diameter: 11mm OD Flow Rate: 470lph @ 40psi (120+ gph) Test Voltage: 13.5 Volt

INSTALL KIT AVAILABLE
