LINK MXT Strada 10" Dash - Street Edition Driver Display
Proudly Accepting
DETAILS

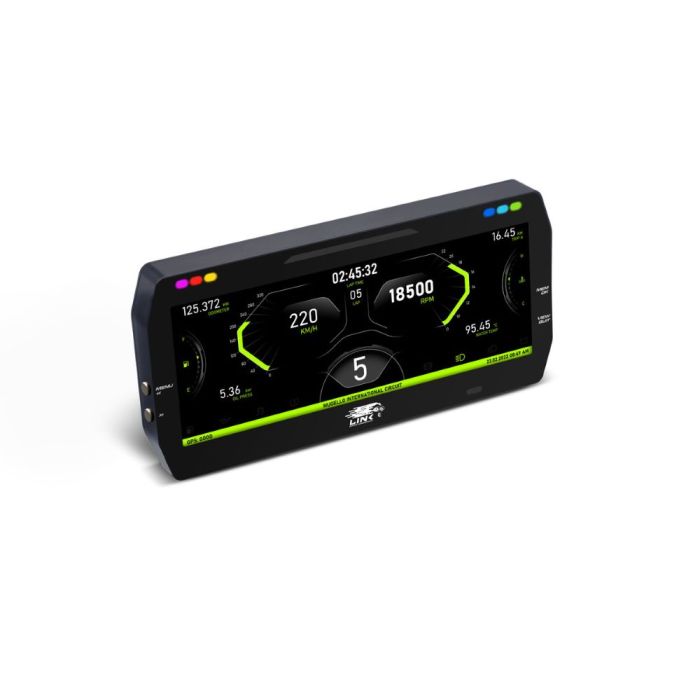

Link MXT Strada 10” dash, powered by AIM.
The Link MXT Strada Street edition is a full colour, 10-inch dash display legal for road use featuring 10 RGB shift lights and street icons above the dash. It is pre-configured to work with all Link G4+/G4X/G5 Wire-In and Plug-in ECU's. See features tab for more information.
This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes.
The Strada dash is also available in 5” (MXS) and 7” (MXG) versions.
FEATURES
The Link MXT Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 10” TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.
The 10 multi-coloured RGB shift lights on the MXT Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 6 Street Icons located above the screen. These include turn signal indicator lights, headlight, check engine, a warning light and a fuel warning light.
The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information readings from the ECU such as RPM, speed, water temperature, oil pressure and much more.
The Link MXT connects directly to your Link ECU over CAN using via the pin kit and wiring provided in the box.
The dash can be personalised and configured using Link’s PCLink and Aim Technologies Race Studio 3 software (Both free downloads).
Included in the box:
Link MXT Strada 10” Dash
USB cable
14 pin standard wiring
23 pin connector + contacts
GPS module available separately.
Power consumption: 400 mA
Dash Dimensions: 278 X 135 X 43.2mm
Weight: 1200 g
Waterproof: IP65
