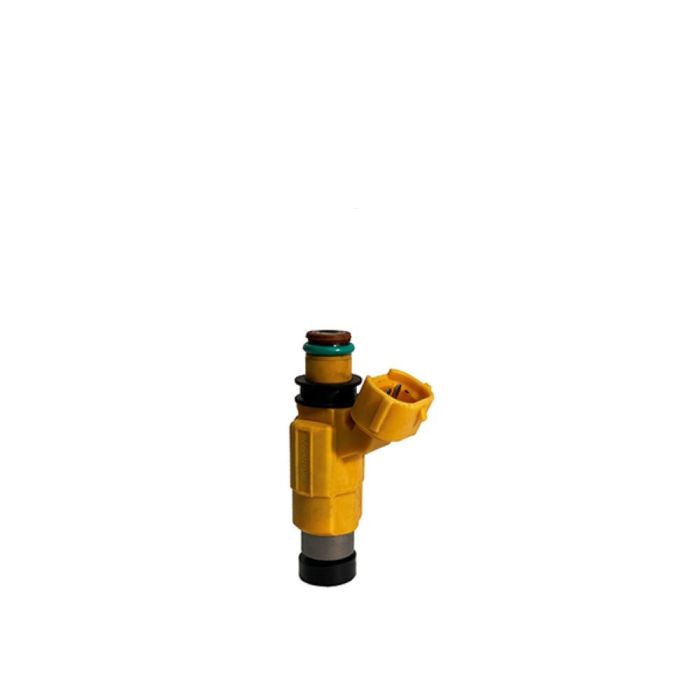

63P-13761-00-00 Yamaha F150 Four Stroke Fuel Injector

For the Yamaha Outboard F150 Four Stroke CDH275 fuel injector with part number 63P-13761-00-00, our cleaning and refurbishment process includes several steps to ensure optimal performance and reliability.

First, all removable parts of the fuel injector are carefully stripped. This allows for a thorough cleaning and inspection of each component.

Next, a resistance test is performed on the coil to assess its functionality. This test helps determine if the coil is operating within the appropriate specifications.

Following that, a three-step ultrasonic cleaning process is carried out. Ultrasonic cleaning utilizes high-frequency sound waves to agitate a cleaning solution, effectively removing contaminants from the injector components. This process helps ensure that the injector is thoroughly cleaned, including hard-to-reach areas and internal passages. Additionally, a reverse back flush is employed to further enhance the cleaning process.

To test the injector's sealing capabilities, a leak-down test is conducted at 80psi, which is twice the normal operating pressure. This test ensures that the injector maintains proper sealing and minimizes the risk of fuel leakage.

As part of the refurbishment process, all worn or damaged parts are replaced with new top-quality components. This includes O-rings, filters, seals, and any additional parts necessary to ensure that the injector is in optimal condition for installation. The use of high-quality replacement parts helps guarantee proper functionality and longevity.
