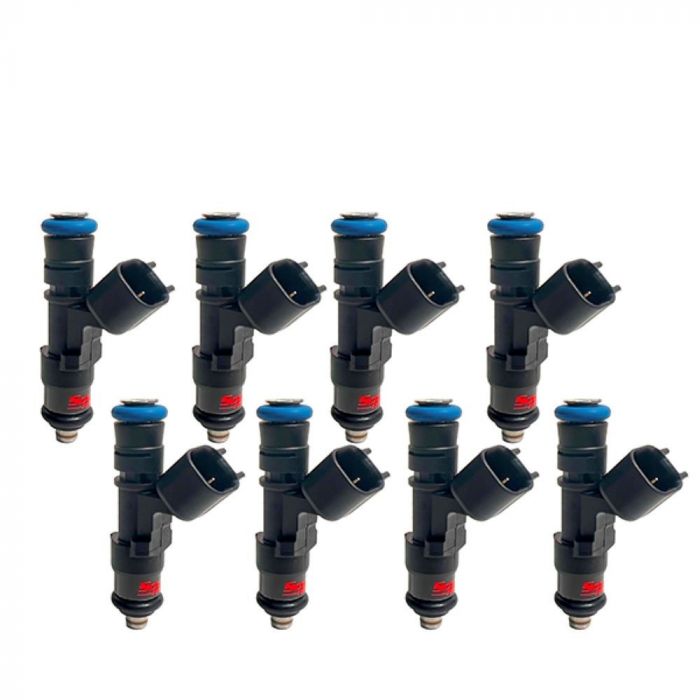

550cc Mustang 5.4 Shelby GT500 DOHC SouthBay Fuel Injectors

550CC MUSTANG SHELBY GT500  SUPERCHARGED DOHC 2007-14

SouthBay's "TruFlow" 550cc Fuel injectors maintain precise control of fuel delivery and atomization for more power better throttle response.

Stainless Steel SS compatible with all known fuels including oxygenated fuel with MTBE, FTW, Q16, M5, C45

550cc/min at 43.5 PSI (3 BAR)
Latency (Dead Time): 10V 1.256 @ 3 Bar
Tested Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

Optimized in house and flow matched dynamically to within ±1%. Full data sheet provided with each set. EV-14, saturated High resistance, no inline resistors or resistor box required for use. Extenders and pigtails for your installation included in the price along with flow data and dead times.  High Impedance injector.

Bosch Fuel Injector for High Performance Off-road applications. This injector will withstand pressures more than 7 Bar making them suitable for boosted motors. All fuel capability. For use on domestic and import off road applications.

For Highly Modified Engines.
