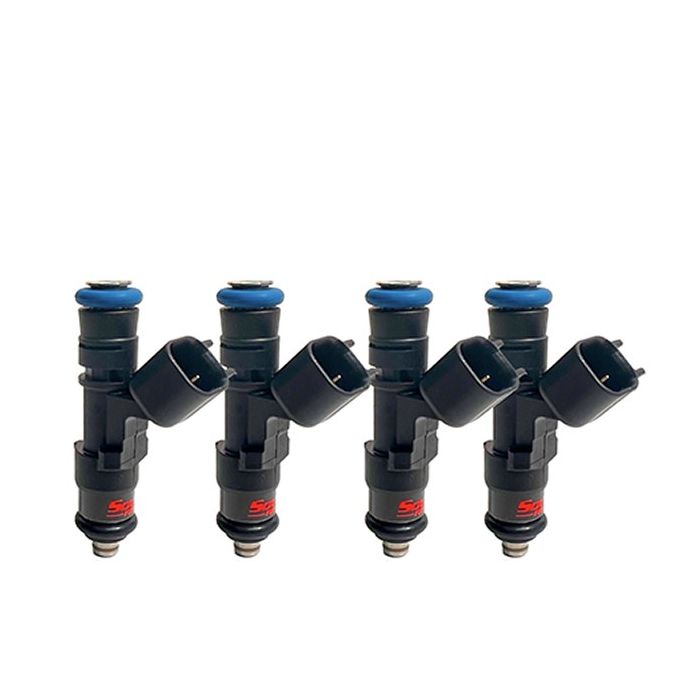

550cc Honda / Acura K20 K24 2.0 2.4 SouthBay Fuel Injectors

550CC HONDA/ACURA K20/K24 2.02.4 (2006-2018)

Stainless Steel compatible with all fuels including oxygenated fuel with MTBE, FTW, Q16, M5, C45

SouthBay's "TruFlow" 550cc Fuel injectors maintain precise control of fuel delivery and atomization for more power and better throttle response. Optimized in house and flow matched dynamically to within ±1%. Full data sheet provided with each set. EV-14, saturated High resistance, no inline resistors or resistor box required for use. Extenders and pigtails for your installation included in the price along with flow data and dead times.  High Impedance injector.

550cc/min at 43.5 PSI (3 BAR)
Latency (Dead Time): 0.65 at 14 volts
Tested Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

Excellent fuel atomization - Excellent linearity Low end pulse width accurate to within 1% down to 2ms. This Bosch injector will not require more than 1% trim

Static Flow Rate: 52.0 lb/hr @ 43.5PSI (300kPa) 550cc/min or 6.4gm/sec
Static Flow Rate: 59.7 lb/hr @ 58.0PSI (400kPa) 630cc/min or 7.4gm/sec
Dynamic Flow Rate 2.5ms pulse width and 10ms repetition rate @ 43.5PSI (300KPa): 1.1 gm/pulse
Dynamic Flow Rate 2.5ms pulse width and 10ms repetition rate @ 58.0PSI (400KPa): 1.3 gm/pulse
Cone Spray Angle = 20-22 degrees - single spray cone.

For High Performance Off-road applications. This injector will withstand pressures more than 7 Bar making them suitable for boosted motors. All fuel capability. For use on domestic and import off road applications. For Highly Modified Engines.
