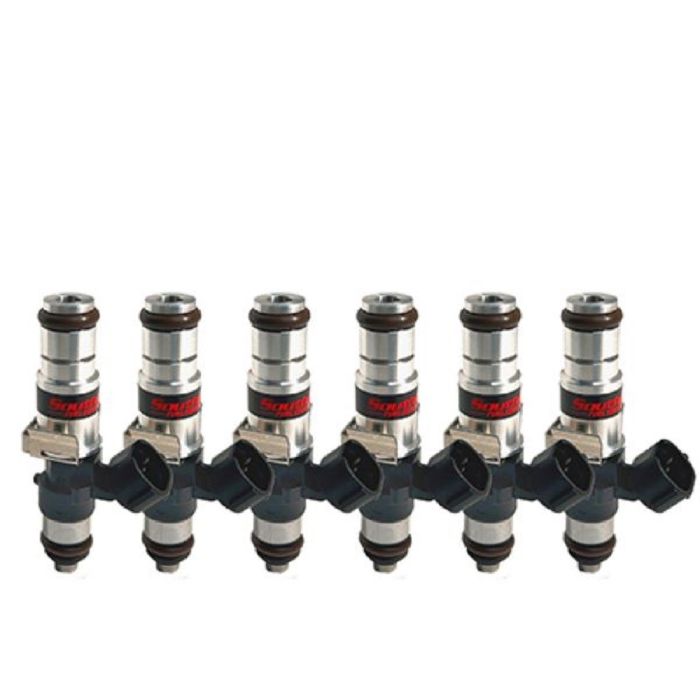

2200cc Mazda Rotary 20B 3 Rotor SouthBay Fuel Injectors

2200cc Mazda Rotary 20B 3 Rotor SouthBay Fuel Injectors 2200cc utilize high impedance Bosch cores and are rated at 43.5psi (3Bar). Works with most fuels. Not compatible with oxygenated fuel with MTBE. SouthBay Fuel Injectors 2200cc maintain precise control of fuel delivery and atomization for more power and better throttle response. Flow matched dynamically to within ±1%. The matching process of the 2200cc injector combined with the fast response and linearity produces amazing idle qualities. SouthBay Fuel Injectors for High Performance Off-road applications. Injectors are covered by defects in original manufacture by our lifetime warranty.

Coil Resistance: 9.1 Ohms
Dead Time: 8V 1.450  @ 3 Bar
Flow Rate @ 43.5 PSI ( 300kPa ) w/Gas: 2200 cc/min = 210 lb/hrStatic
Connector: Denso / Sumitomo
